6S 21.0V 60Ah semi-solid-state drone battery, 433Wh/kg cell energy density, 1260Wh, 1.5C continuous / 5C peak discharge.

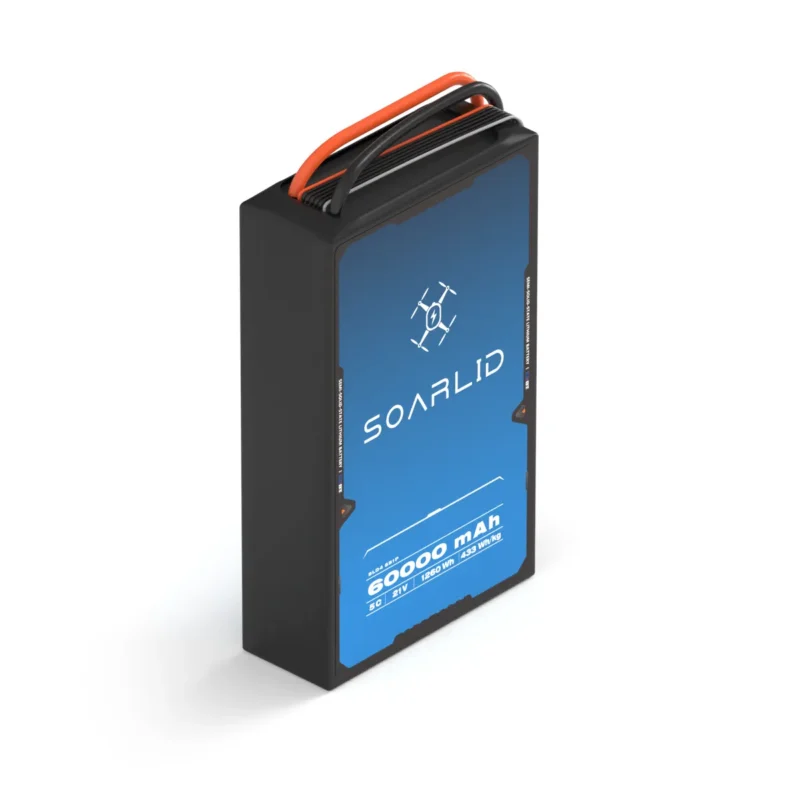

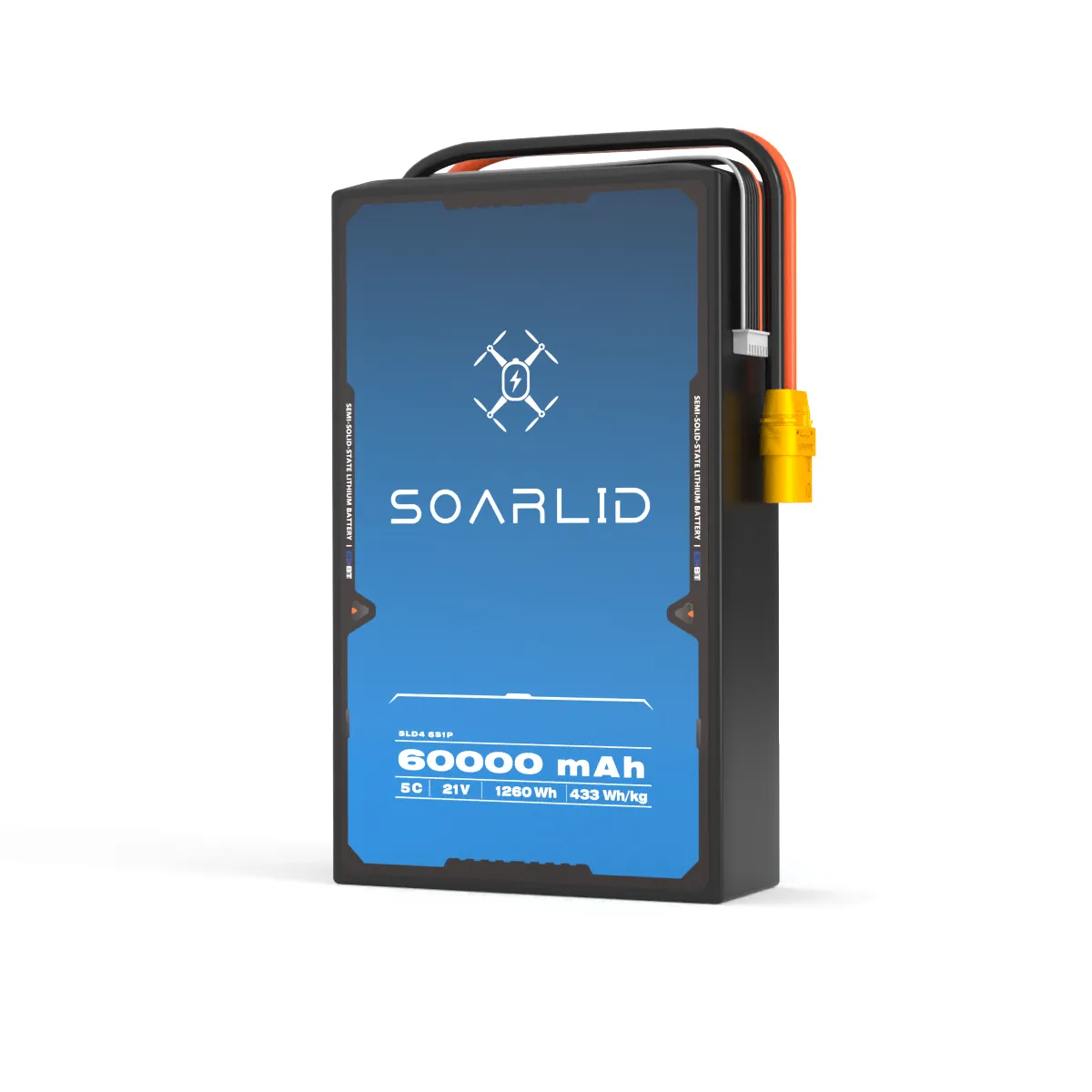

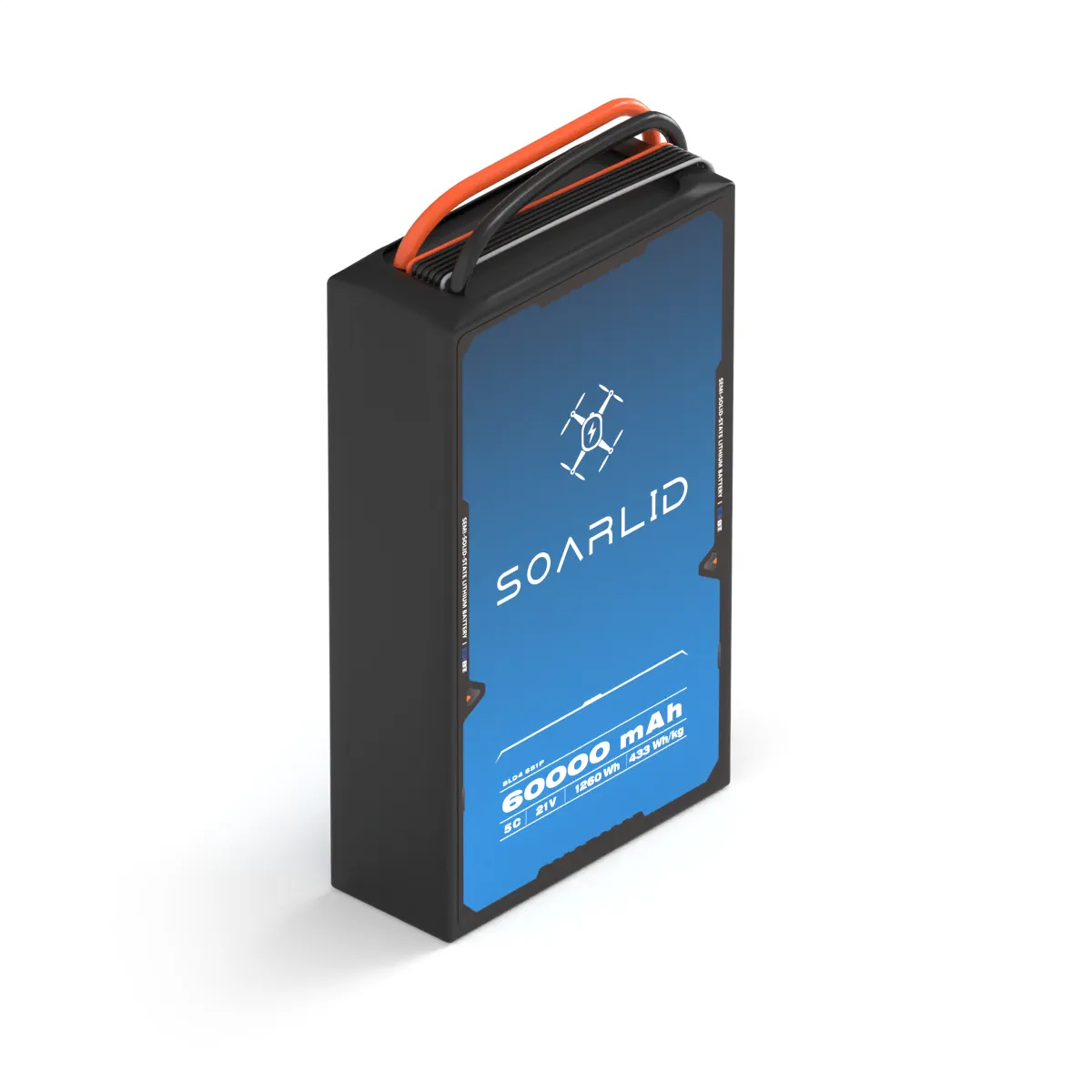

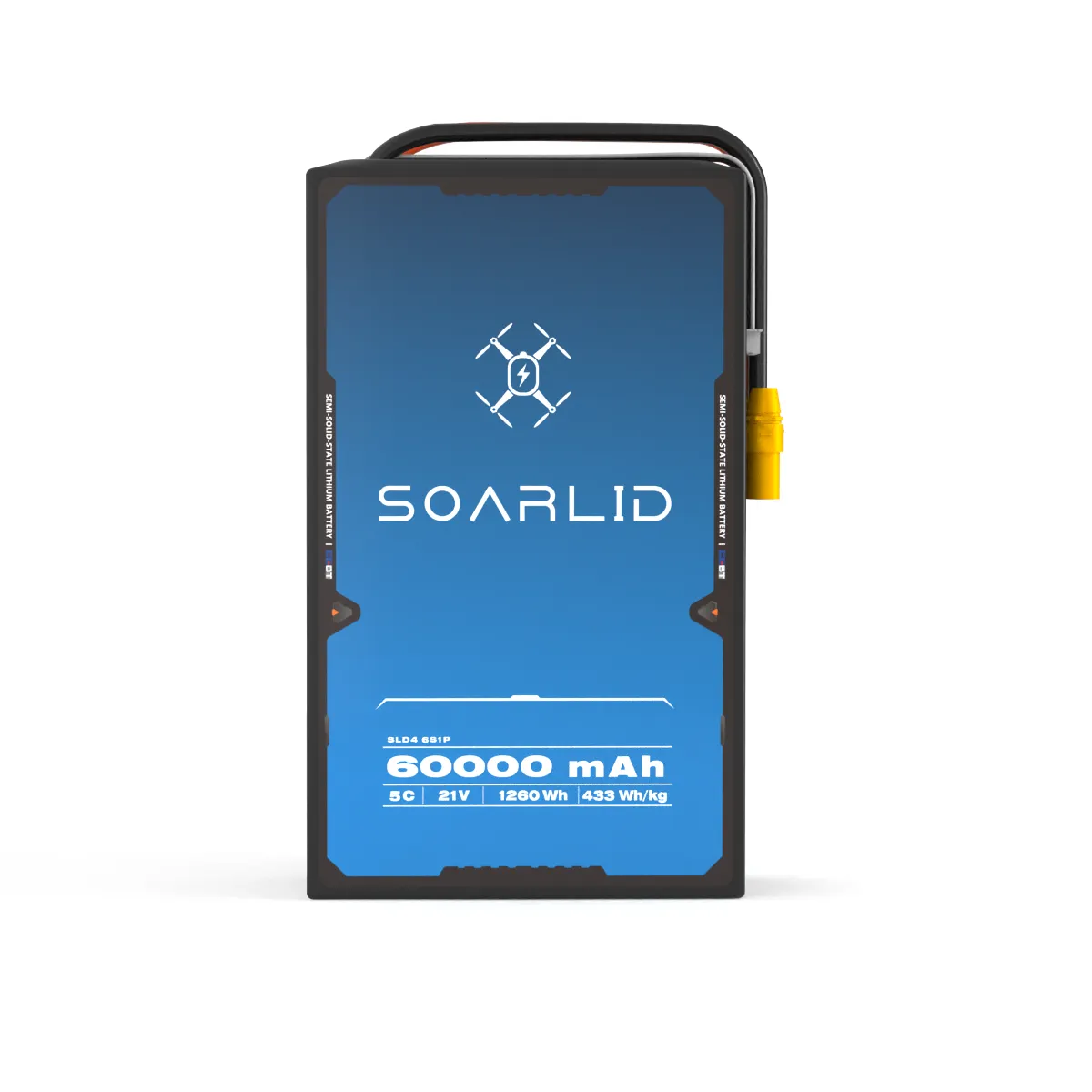

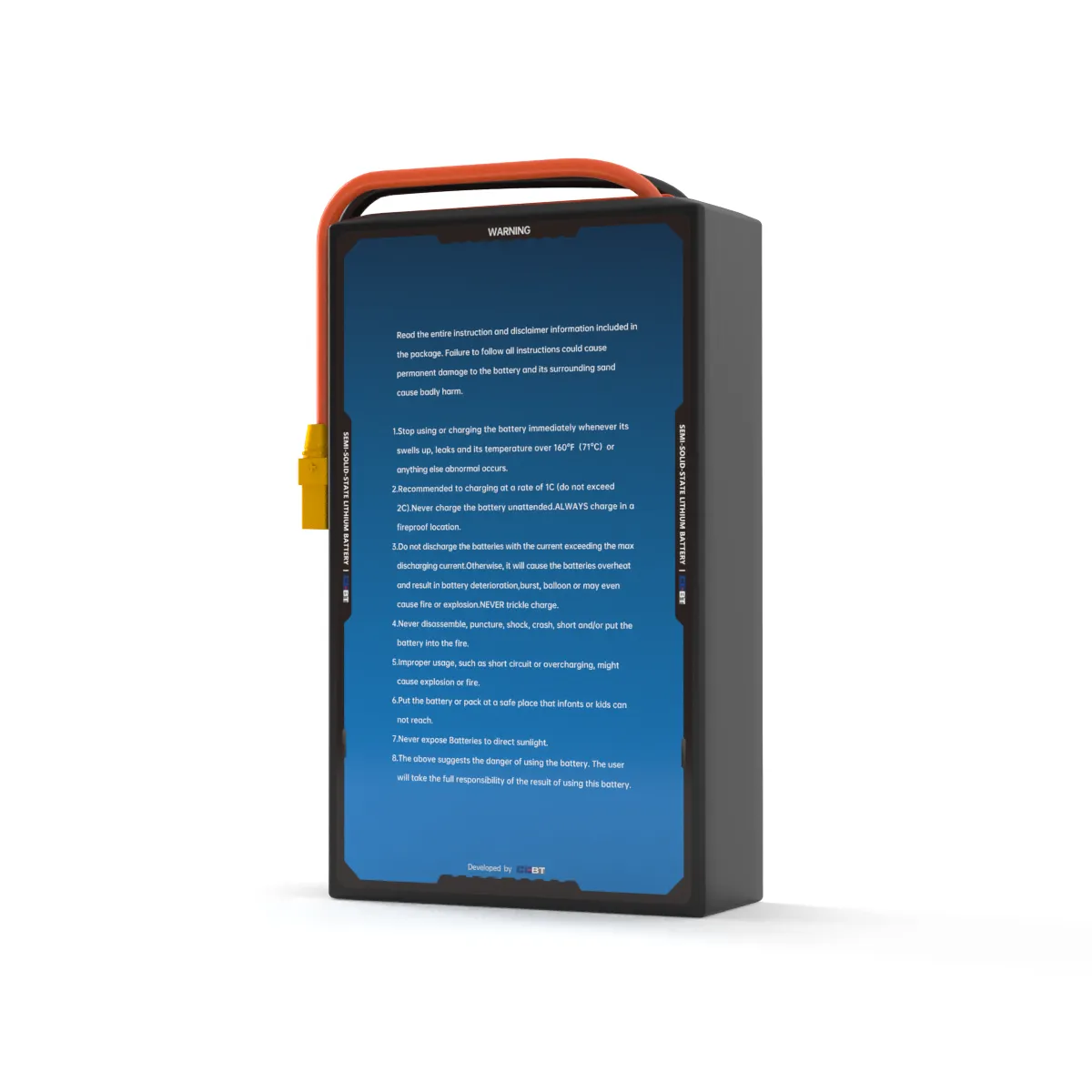

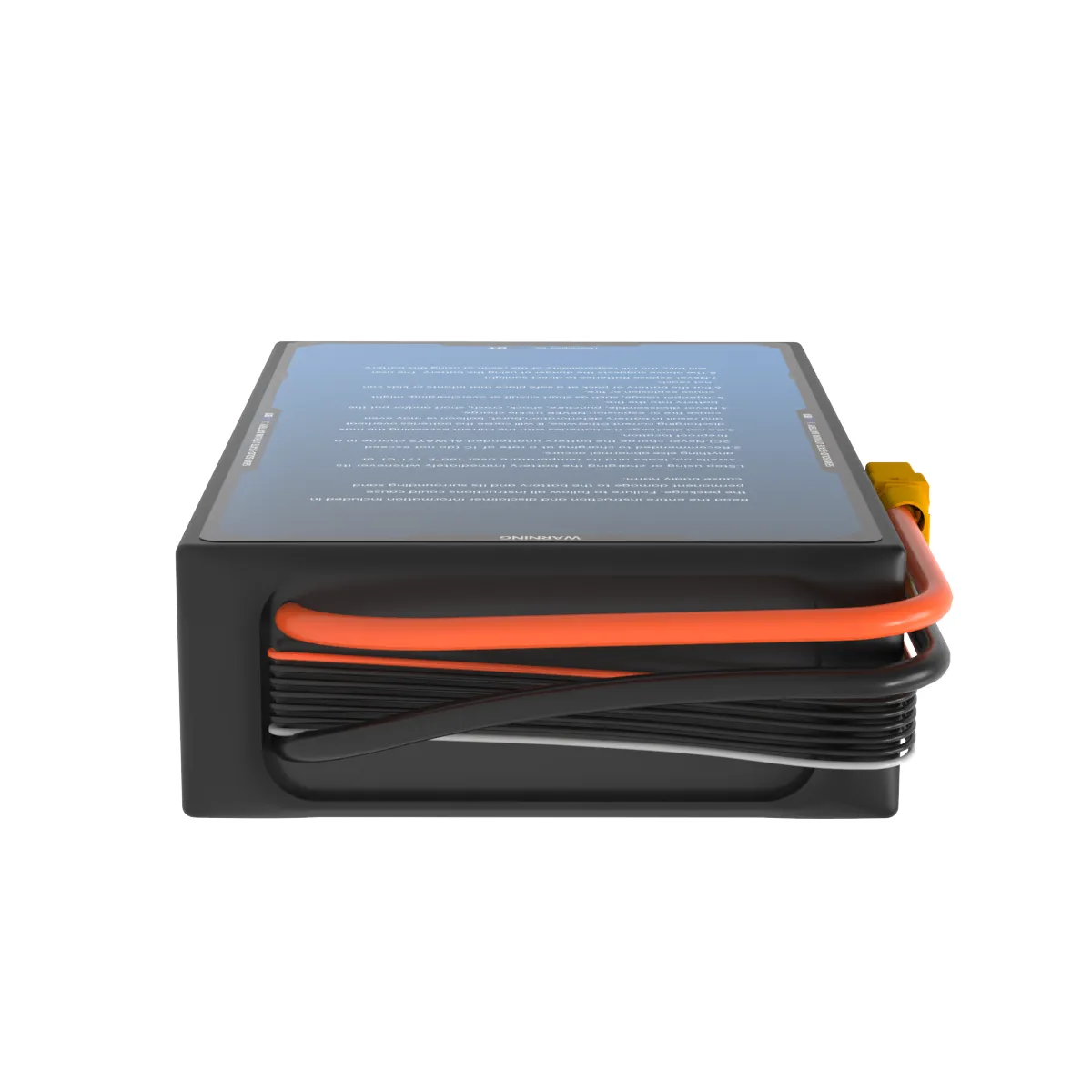

The SOARLID SLD4-6S60Ah is a 6S 21.0V 60Ah semi-solid-state drone battery from CGBT’s SLD4 series, built on 433Wh/kg semi-solid-state cells. It stores about 1260Wh at roughly 3.1kg and is designed for VTOL fixed-wing, mapping and long-range multirotor drones where flight time per kilogram is the priority, with discharge rated down to -40°C for cold-weather operations.
The 1.5C continuous / 5C peak discharge rating is matched to efficient endurance cruise. The reference build uses an XT90 power plug and XH-7P balance plug; leads, connectors, case design and BMS communication protocol can be customized to your airframe. Contact CGBT for the full datasheet, sample lead time and OEM pricing.
See the full range of 400Wh/kg Semi-Solid-State Drone Batteries, or read how CGBT builds OEM drone battery packs for your airframe.
Every CGBT pack can be built to your airframe: cell configuration, capacity, discharge rate, connectors, enclosure and BMS communication protocol. Send us the model you are looking at and an engineer replies within 24 hours.
