Semi-Solid State350Wh/kg Series

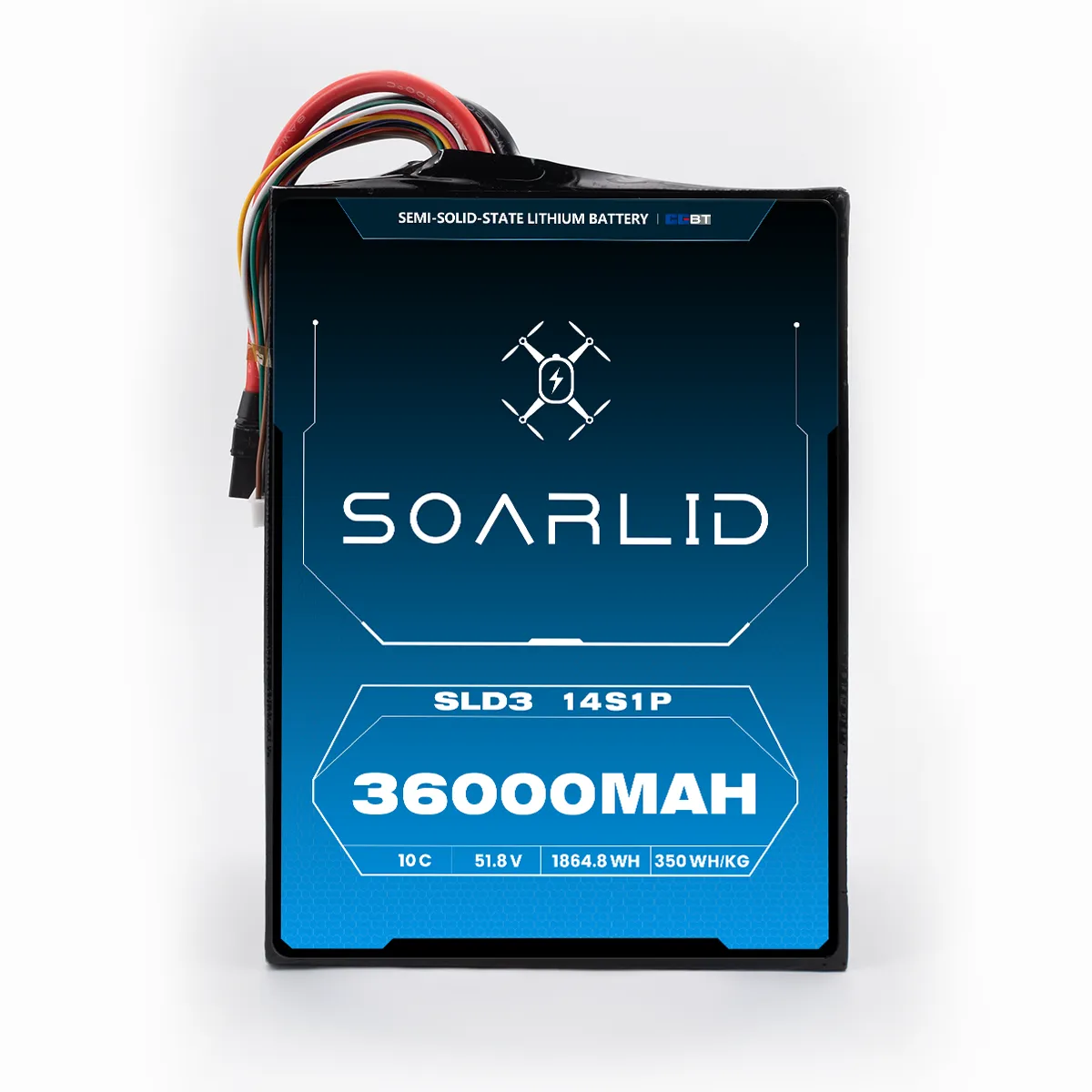

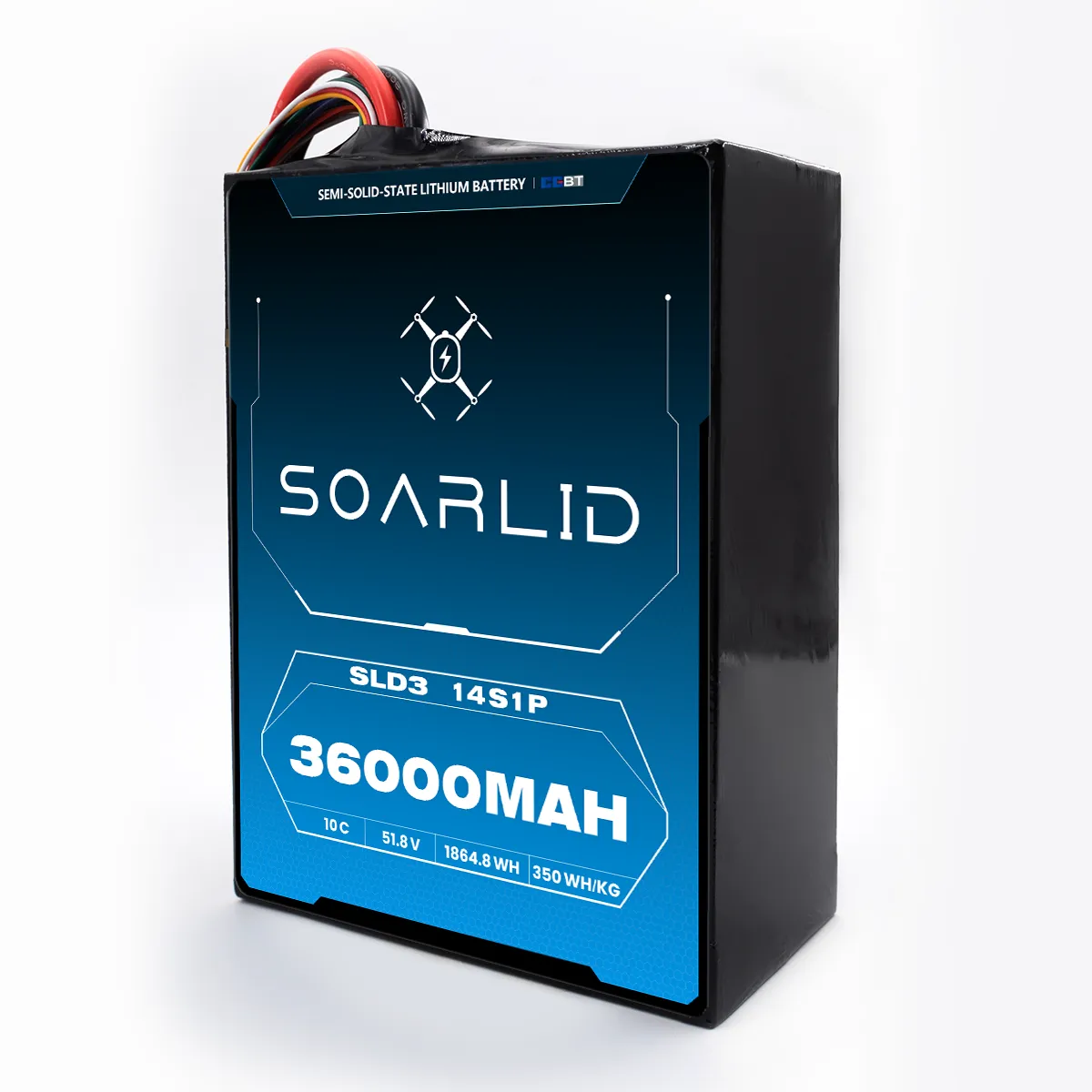

SLD3-14S-36Ah Semi-Solid Drone Battery

14S 51.8V 36Ah semi-solid-state industrial UAV battery, 350Wh/kg cell energy density, 3C/10C discharge.

36AhCapacity
51.8VNominal voltage
350Wh/kgCell energy density
3C/10CDischarge rate
  • ISO 9001 certified factory
  • Voltage, capacity, connector & BMS customizable
  • Engineer reply within 24 hours

Specifications

Model
SLD3-14S-36Ah
Configuration
14S
Nominal Voltage
51.8V
Capacity
36Ah
Energy
1865Wh
Cell energy density
350Wh/kg
C-Rate
3C/10C
Dimensions
155*90*205mm
Cell Energy Density
350Wh/kg
Weight
5.6 kg

Product Overview

The SLD3-14S-36Ah is a 14S 51.8V 36Ah semi-solid-state industrial UAV battery from CGBT, built on 350Wh/kg semi-solid-state cells. It stores approximately 1865Wh of energy and is designed for agricultural, inspection, mapping and mid-size logistics UAVs.

Dimensions, connectors, case design and BMS communication protocol can be customized to your airframe. Contact CGBT for the datasheet, sample lead time and OEM pricing.

Need a different voltage, capacity or connector?

Every CGBT pack can be built to your airframe: cell configuration, capacity, discharge rate, connectors, enclosure and BMS communication protocol. Send us the model you are looking at and an engineer replies within 24 hours.

Related Products

SLD4-12S-33Ah drone battery
Semi-Solid State

SLD4-12S-33Ah

12S · 44.4V · 33Ah · 400Wh/kg

View details

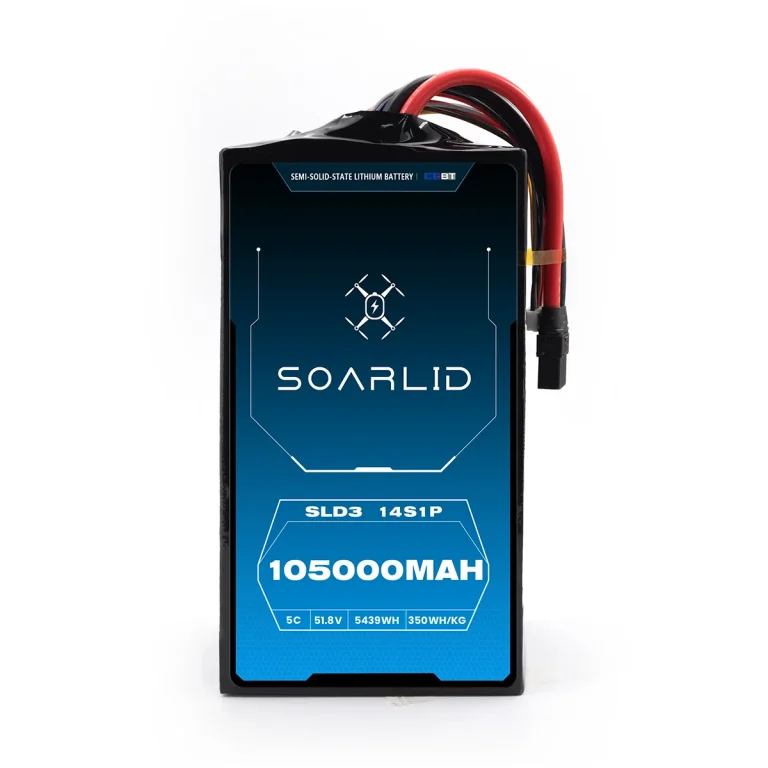

SLD3-14S-105Ah drone battery
Semi-Solid State

SLD3-14S-105Ah

14S · 51.8V · 105Ah · 350Wh/kg

View details
SLD3-18S-81Ah drone battery
Semi-Solid State

SLD3-18S-81Ah

18S · 66.6V · 81Ah · 350Wh/kg

View details

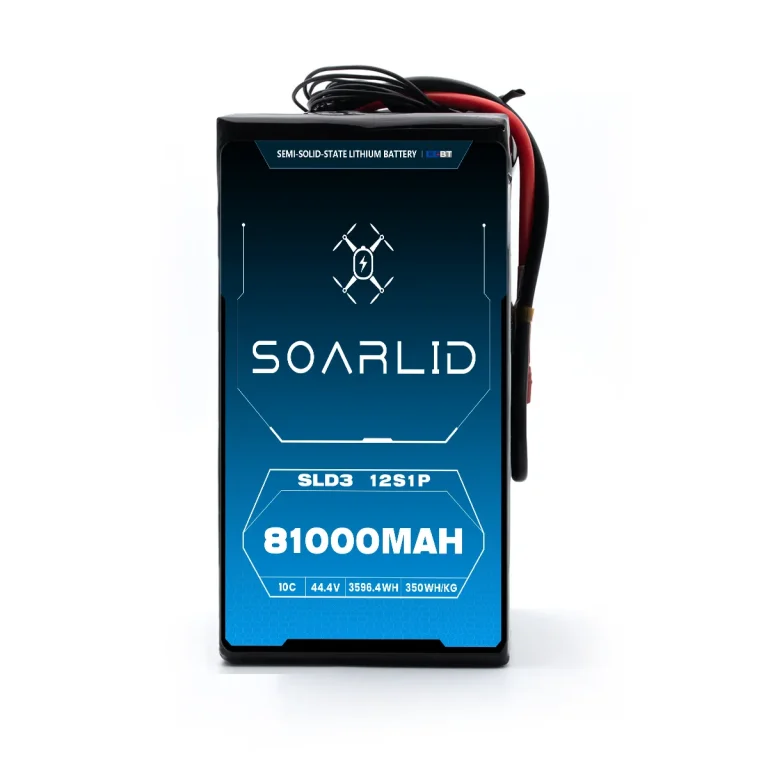

SLD3-12S-81Ah drone battery
