Semi-Solid State400Wh/kg Series

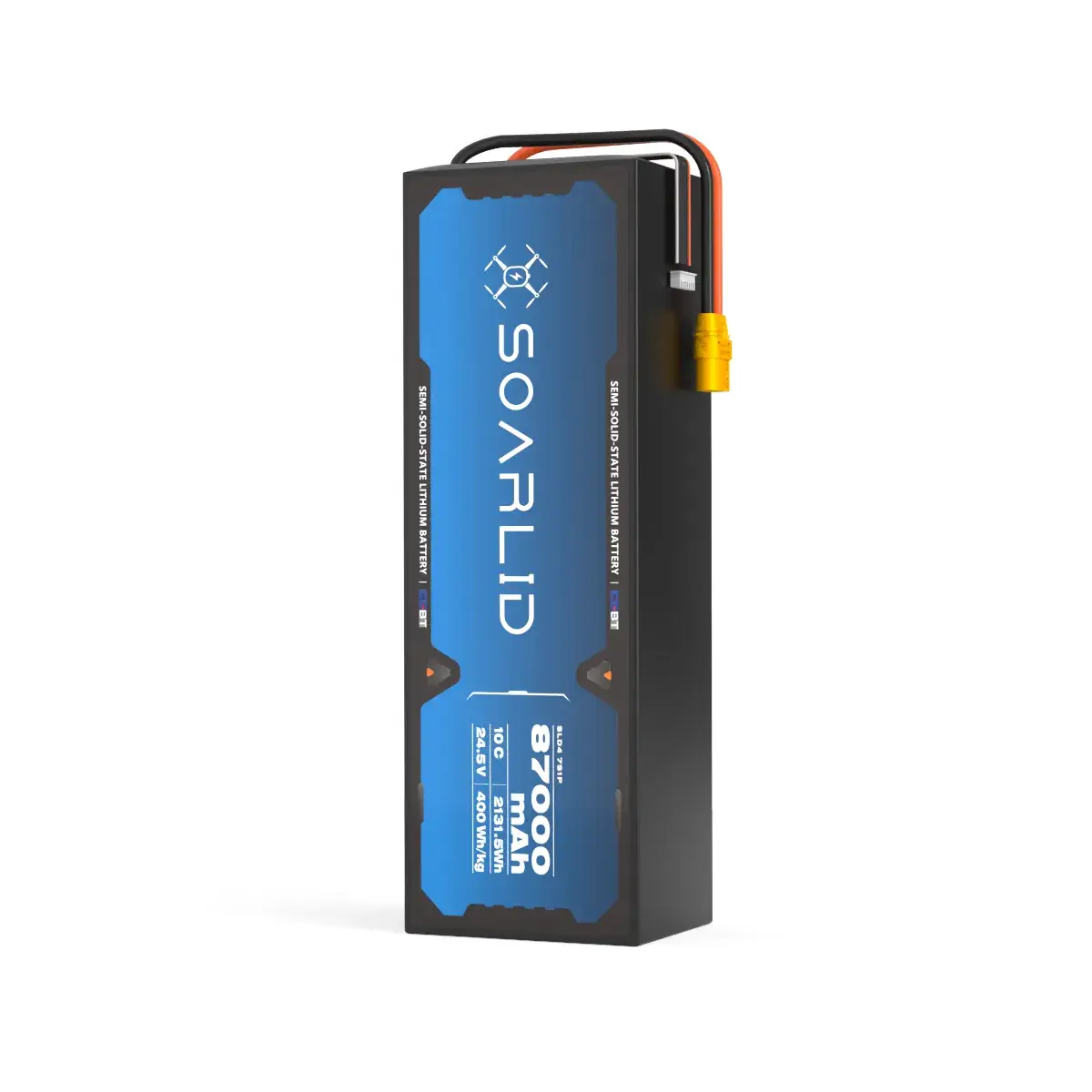

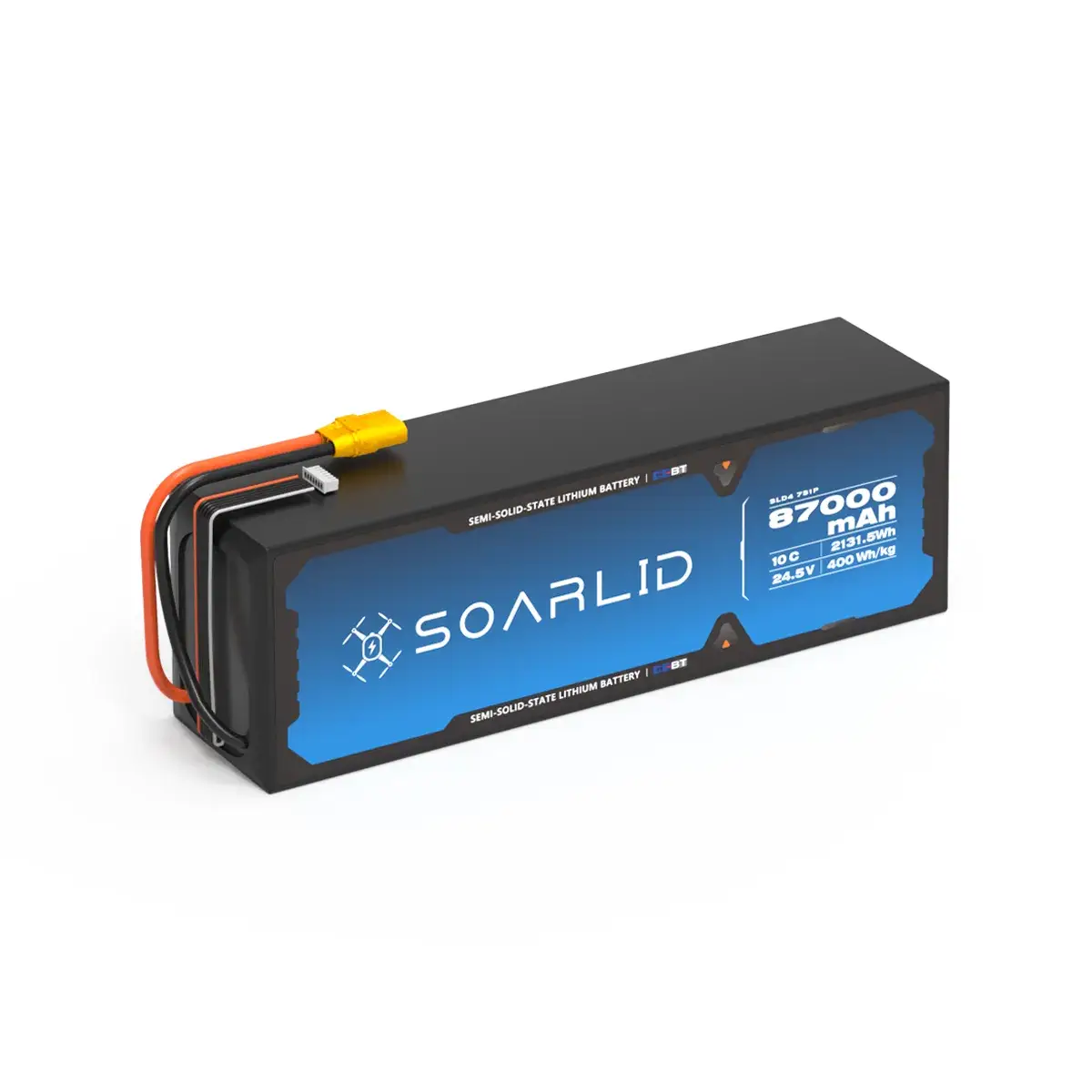

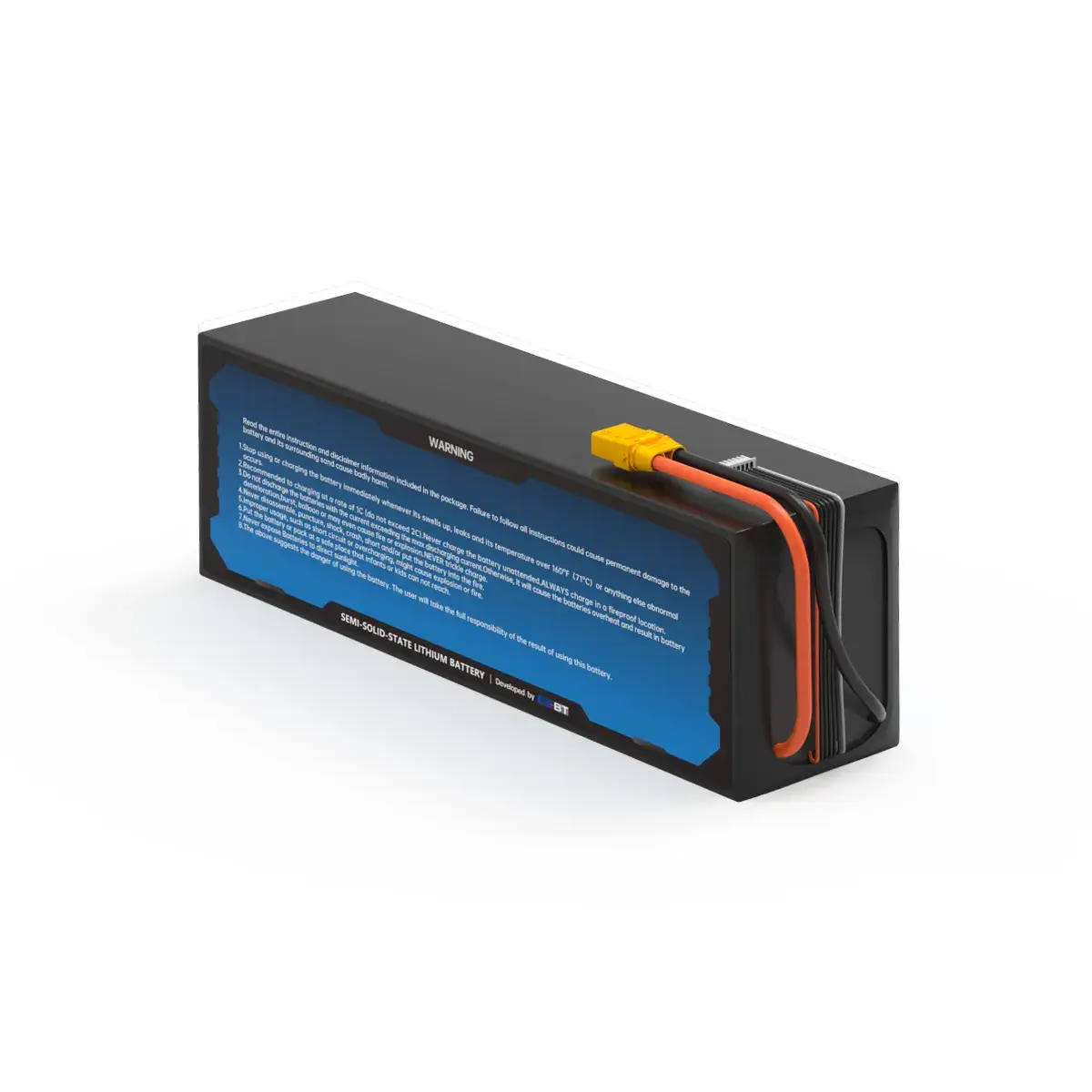

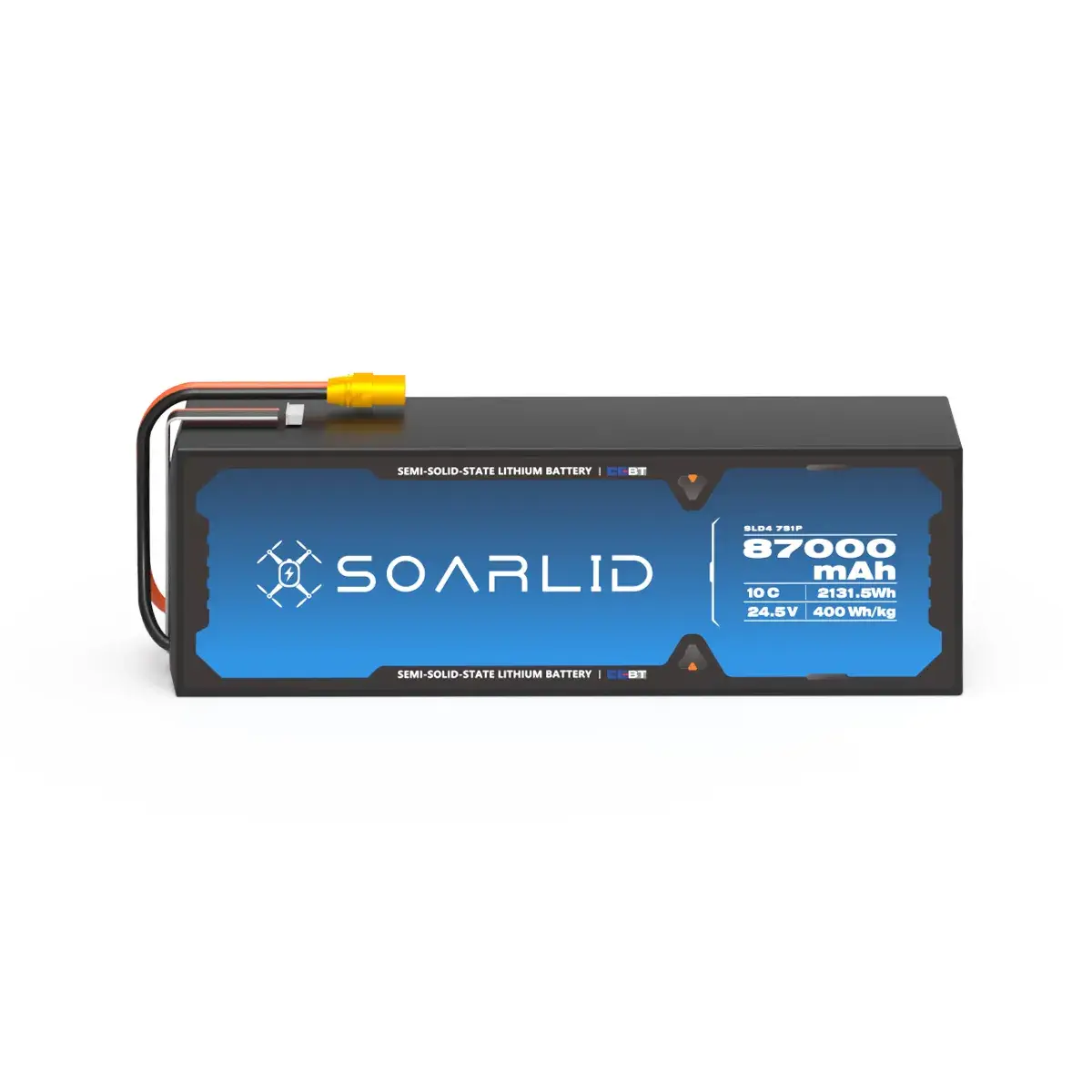

SLD4-7S86Ah Semi-Solid Drone Battery

Name: SLD4-7S86Ah | 7S 86Ah Semi-Solid Drone Battery 400Wh/kg
SKU: SLD4-7S-87Ah

7S 86Ah semi-solid-state industrial UAV battery with 24.5V nominal voltage and 400Wh/kg cell energy density

86AhCapacity

24.5VNominal voltage

400Wh/kgCell energy density

10CDischarge rate

ISO 9001 certified factory
Voltage, capacity, connector & BMS customizable
Engineer reply within 24 hours

Specifications

Model: SLD4-7S86Ah
Capacity: 86000mAh
Nominal Voltage: 24.5V
Energy: 2107Wh
Cell Energy Density: 400Wh/kg
Configuration: 7S
C-Rate: 10C
Maximum charge current: 86.0A (1C)
Charge cut-off voltage: 30.1V
Discharge cut-off voltage: 17.5V@T>=0C 15.4V@T < 0C
Continuous discharge rate: 258A(3C)
Maximum discharge current: 860A(10C)@10S (SOC > 50%)
Cycle life: 500 cycle
Working temperature: -40~55C
Storage temperature: -20~40C
Storage humidity: <85%RH
Dimensions: 92*117*350mm
Weight: approx. 5.5kg
Power plug: QS8 (Optional)
Balance plug: XH-8P(B0~B7) (Optional)

Product Overview

SOARLID SLD4-7S86Ah Semi-solid-state Battery for industrial UAV applications.

Need a different voltage, capacity or connector?

Every CGBT pack can be built to your airframe: cell configuration, capacity, discharge rate, connectors, enclosure and BMS communication protocol. Send us the model you are looking at and an engineer replies within 24 hours.

SLD4-7S86Ah Semi-Solid Drone Battery

Specifications

Product Overview

Need a different voltage, capacity or connector?

Related Products

SLD3-14S-105Ah

SLD3-6S-60Ah

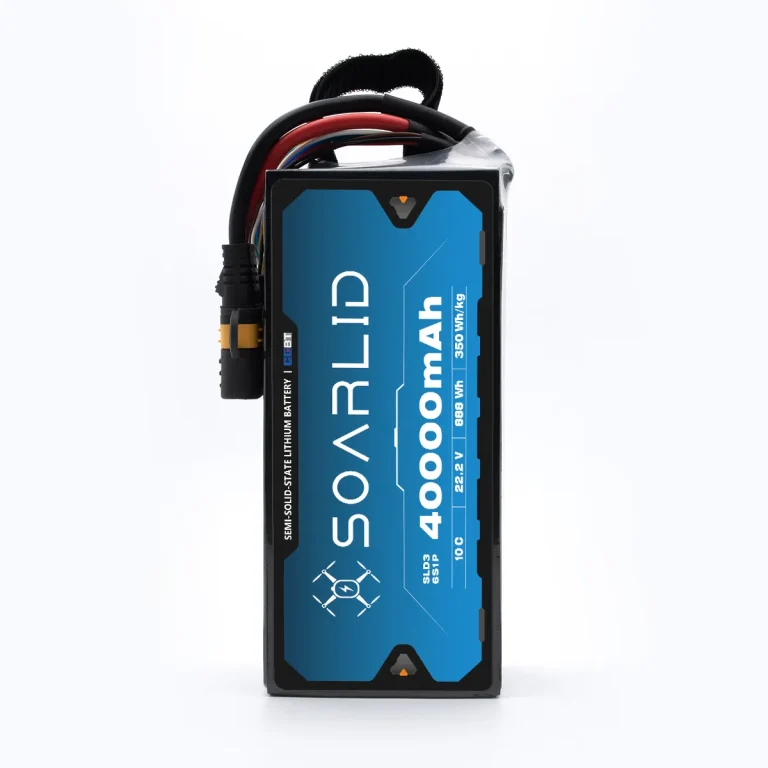

SLD3-6S-40Ah

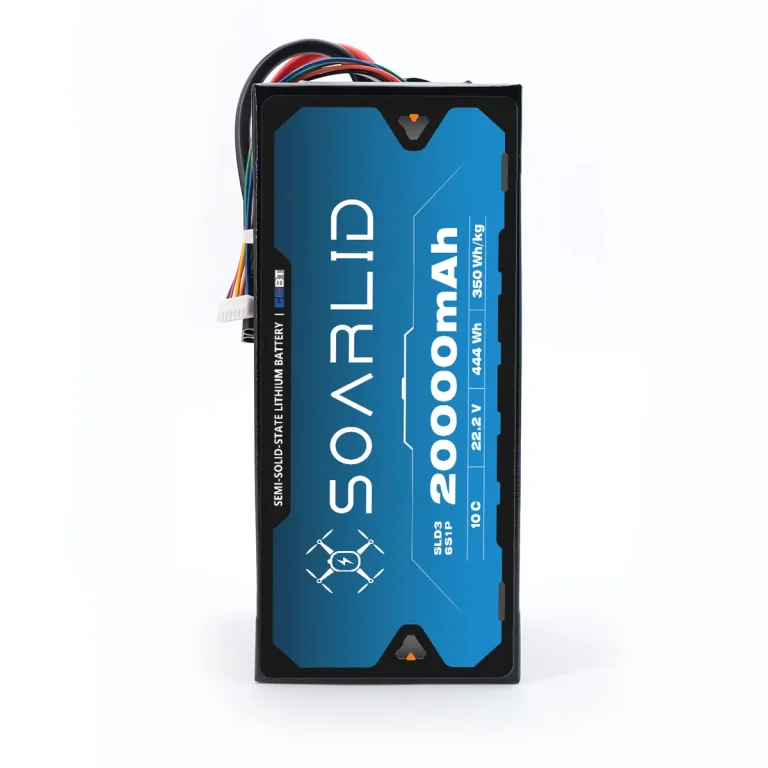

SLD3-6S-20Ah
