Semi-Solid State400Wh/kg Series

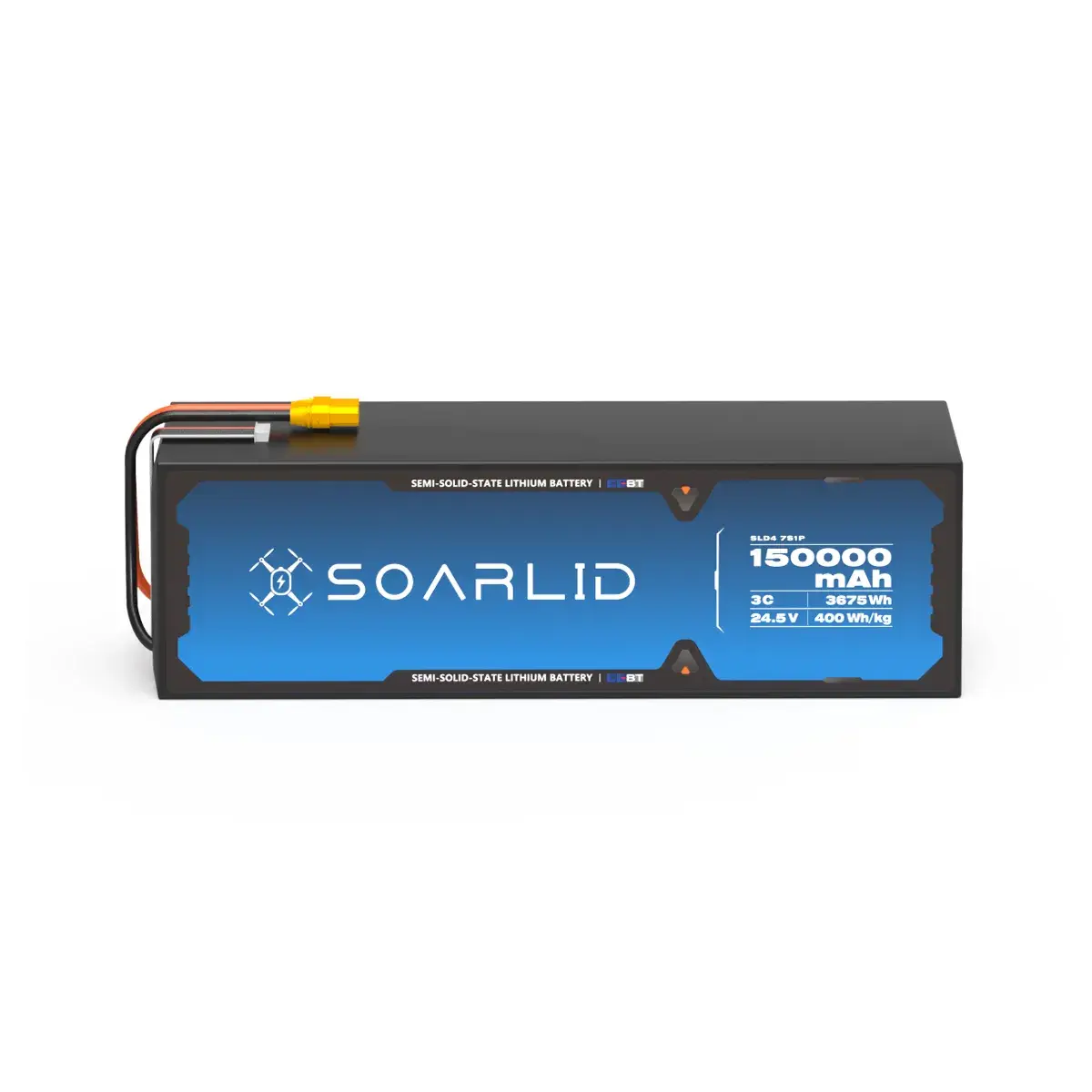

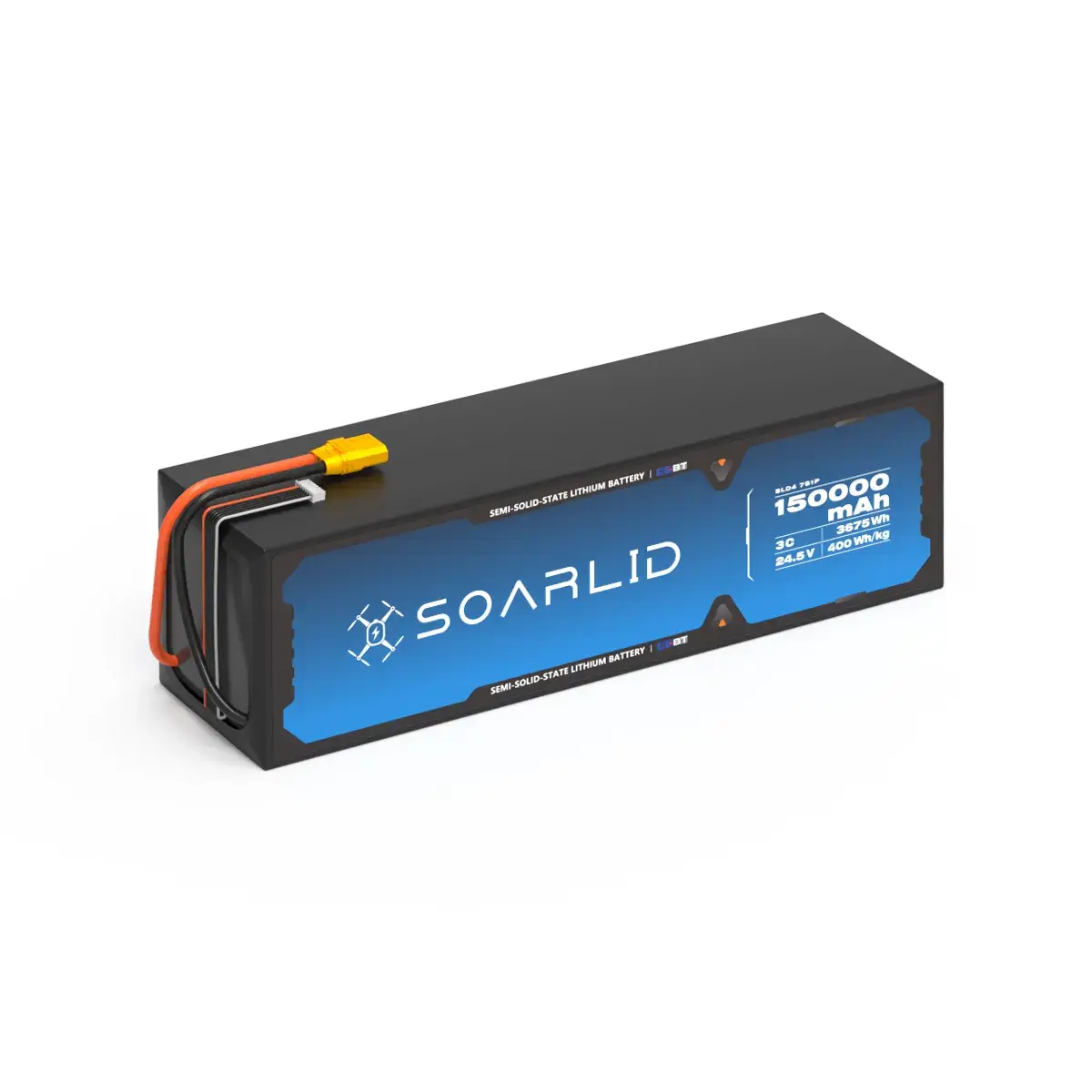

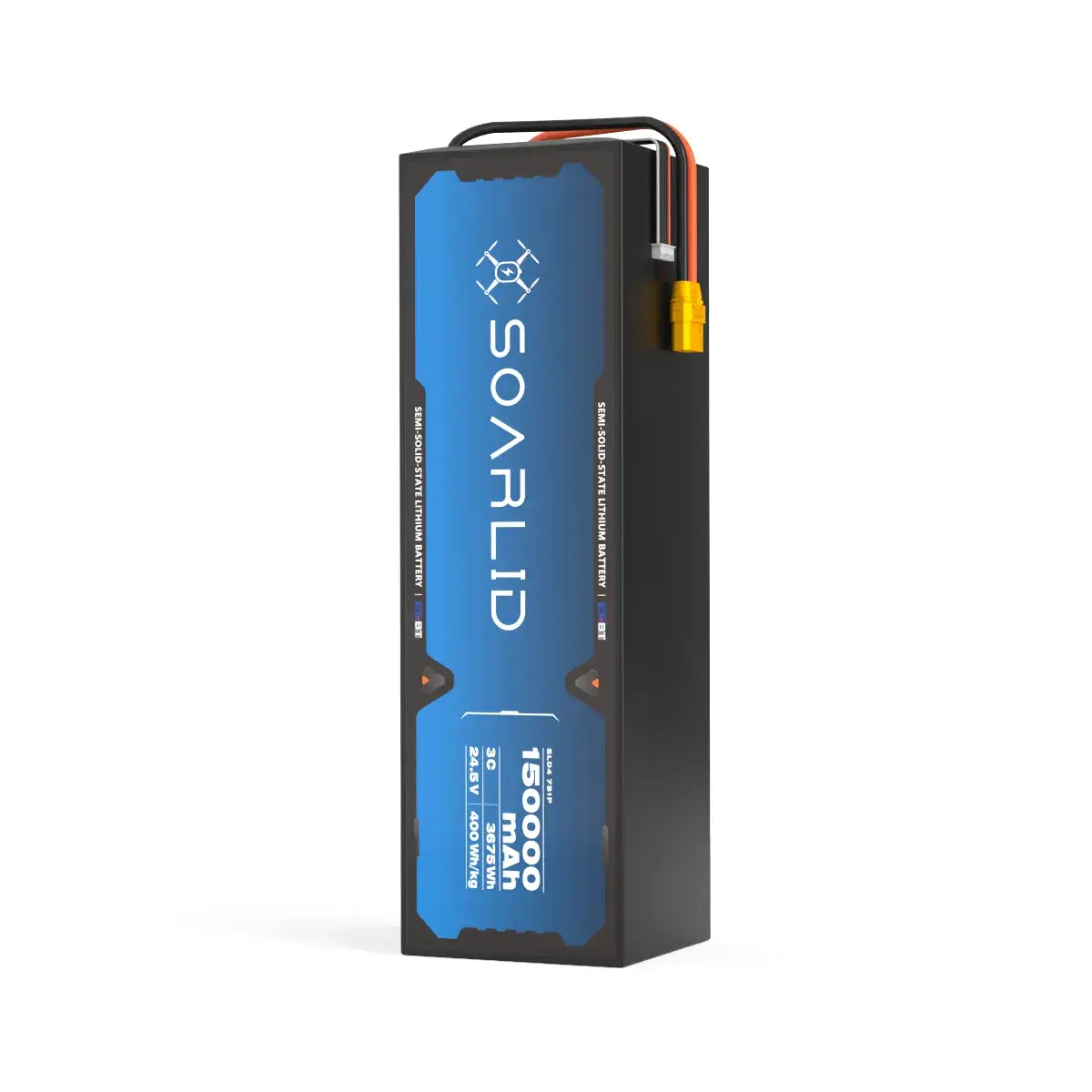

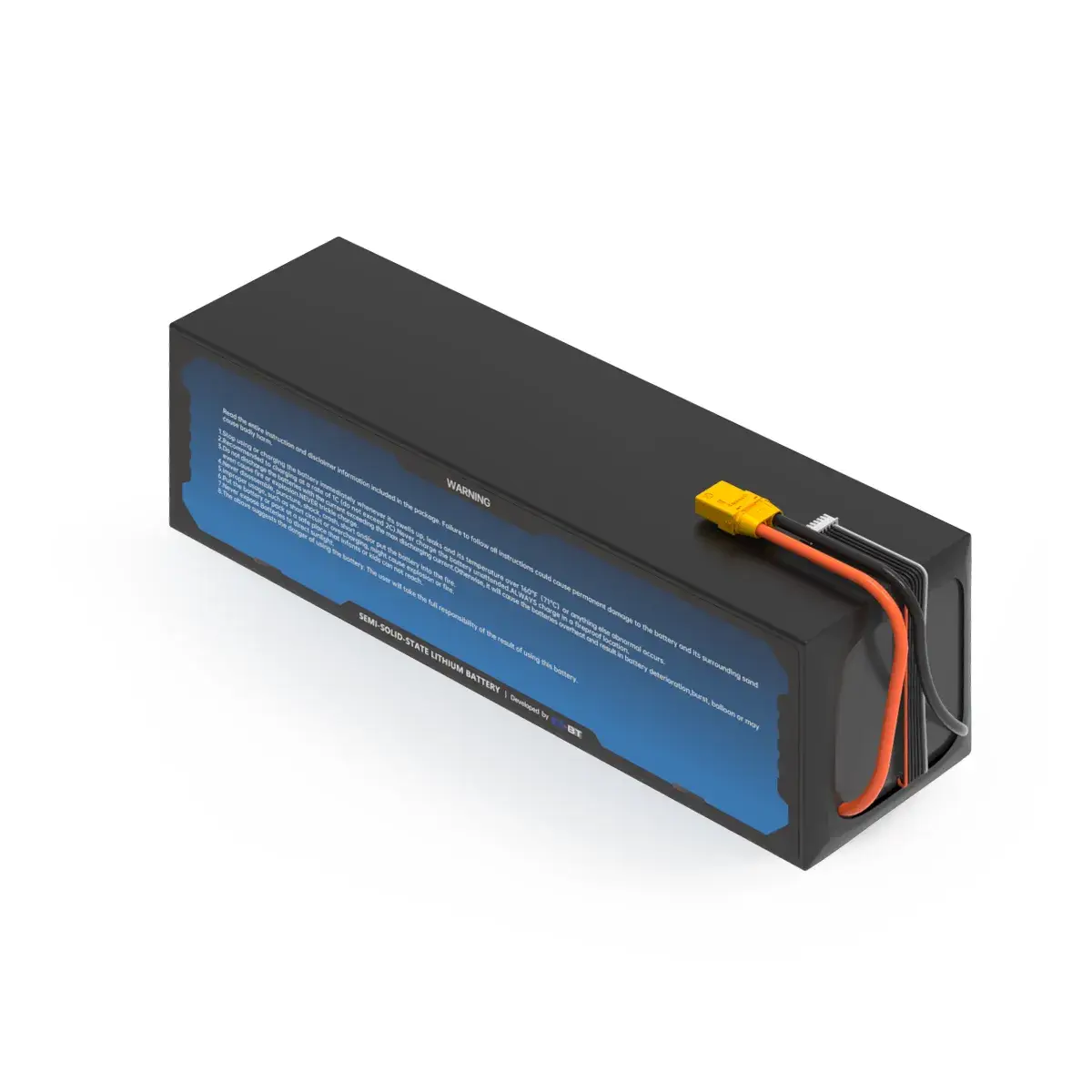

SLD4-7S150Ah Semi-Solid Drone Battery

Name: SLD4-7S150Ah | 7S 150Ah Semi-Solid Drone Battery 400Wh/kg
SKU: SLD4-7S-150Ah

7S 150Ah semi-solid-state industrial UAV battery with 24.5V nominal voltage and 400Wh/kg cell energy density

150AhCapacity

24.5VNominal voltage

400Wh/kgCell energy density

3CDischarge rate

ISO 9001 certified factory
Voltage, capacity, connector & BMS customizable
Engineer reply within 24 hours

Specifications

Model: SLD4-7S150Ah
Capacity: 150000mAh
Nominal Voltage: 24.5V
Energy: 3675Wh
Cell Energy Density: 400Wh/kg
Configuration: 7S
C-Rate: 3C
Maximum charge current: 150.0A (1C)
Charge cut-off voltage: 30.1V
Discharge cut-off voltage: 17.5V@T>=0C 15.4V@T < 0C
Continuous discharge rate: 300A(2C)
Maximum discharge current: 450A(3C)@10S (SOC > 50%)
Cycle life: 500 cycle
Working temperature: -40~55C
Storage temperature: -20~40C
Storage humidity: <85%RH
Dimensions: 120*125*410mm
Weight: approx. 9.5kg
Power plug: AS150 (Optional)
Balance plug: XH-8P(B0~B7) (Optional)

Product Overview

SOARLID SLD4-7S150Ah Semi-solid-state Battery for industrial UAV applications.

Need a different voltage, capacity or connector?

Every CGBT pack can be built to your airframe: cell configuration, capacity, discharge rate, connectors, enclosure and BMS communication protocol. Send us the model you are looking at and an engineer replies within 24 hours.

SLD4-7S150Ah Semi-Solid Drone Battery

Specifications

Product Overview

Need a different voltage, capacity or connector?

Related Products

SLD4-12S-81Ah

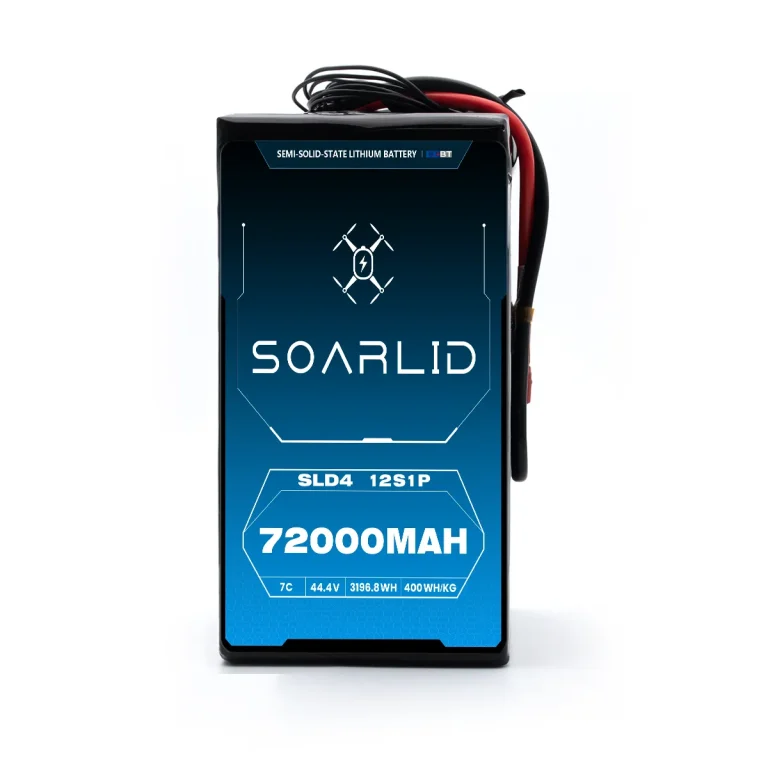

SLD4-12S-72Ah
